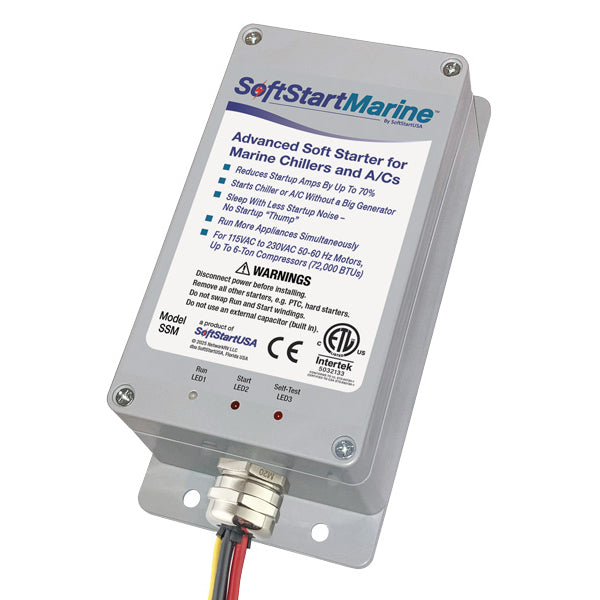

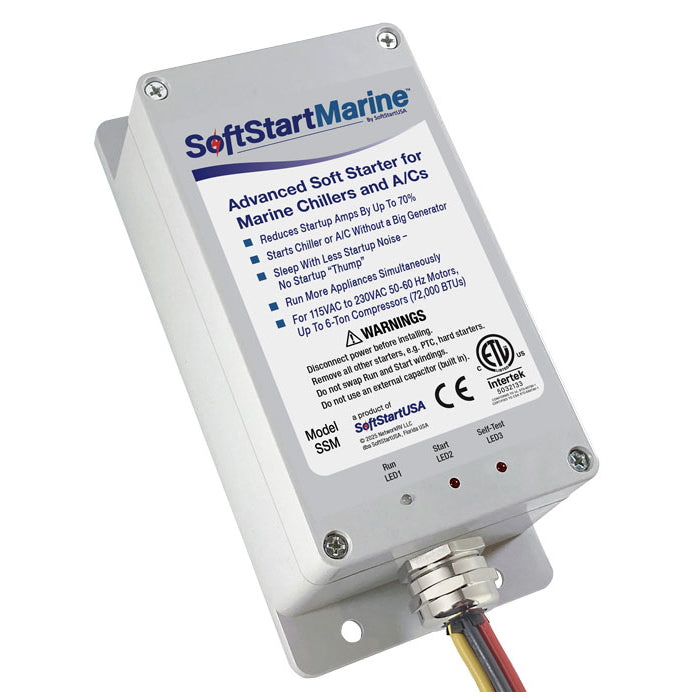

SoftStart Marine

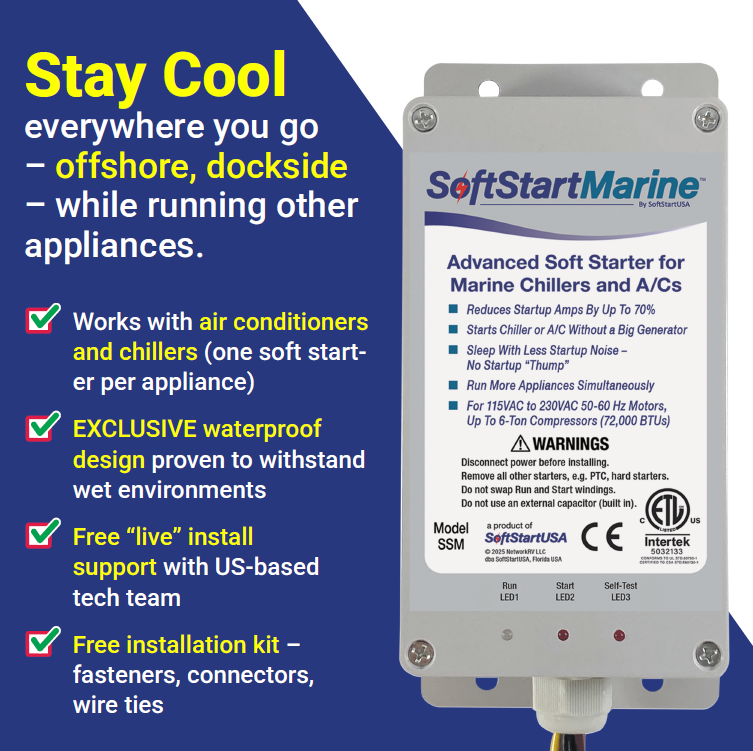

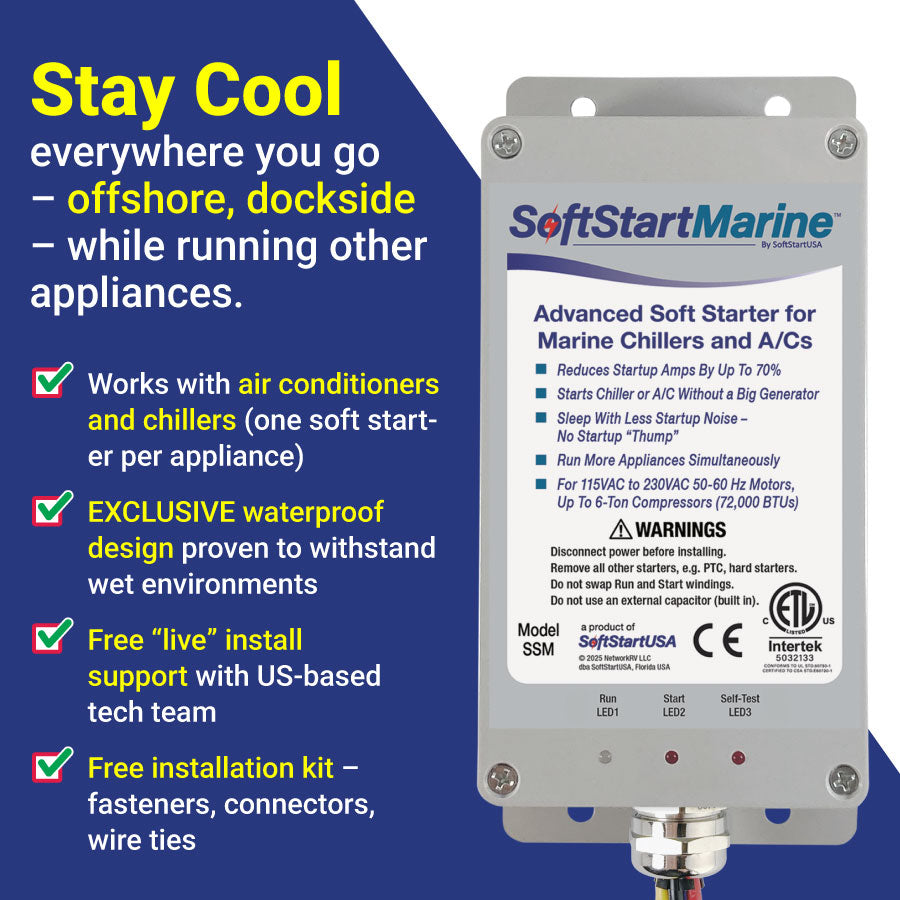

SoftStartMarine is a compact, reliable soft starter for marine air conditioning units and other compressor-driven appliances, reducing startup amps by up to 70%. It ensures smooth, efficient operation even with limited power sources, making it ideal for use with onboard generators, shore power, or battery storage. With a weather-resistant design, it can be installed on any boat to start and run A/C units efficiently, even in low power conditions.

• Up to 70% Reduced Start-Up Amps: Efficient power management, ideal for use with generators as small as 2200W.
• Works With All Marine A/C Units: Compatible with all models, including chillers.
• Free 3-Year Warranty: Backed by comprehensive support.
• Weather-Resistant: Built to withstand moisture and dust, ensuring durability in marine environments.

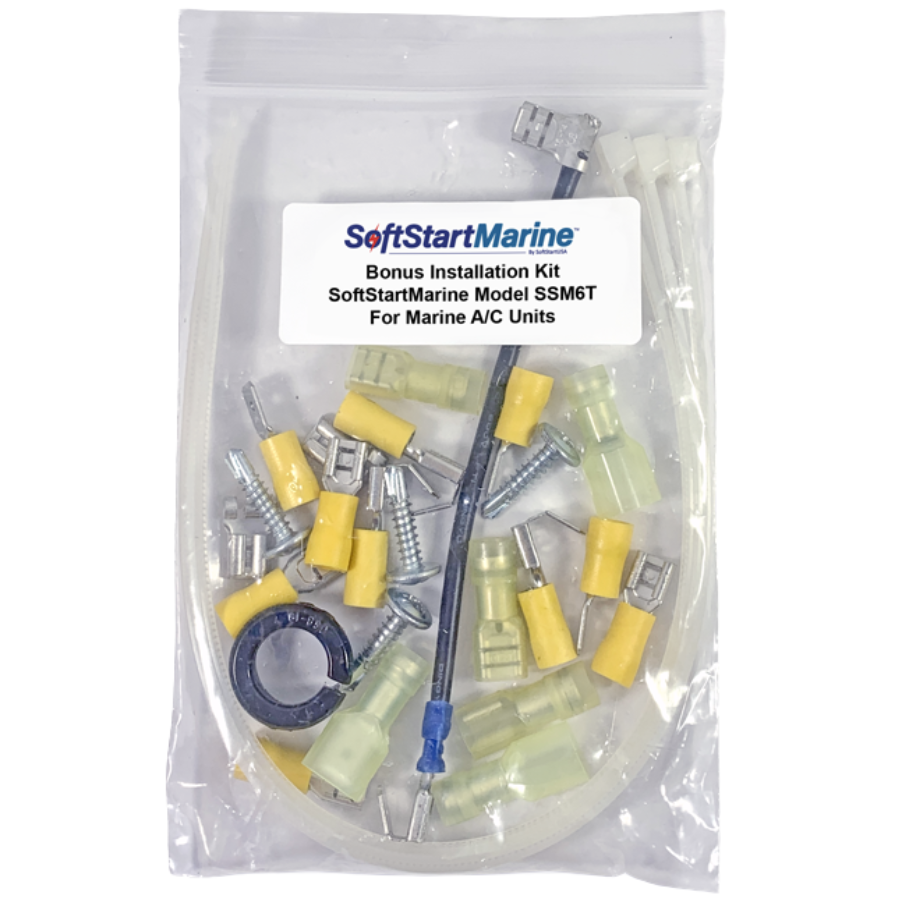

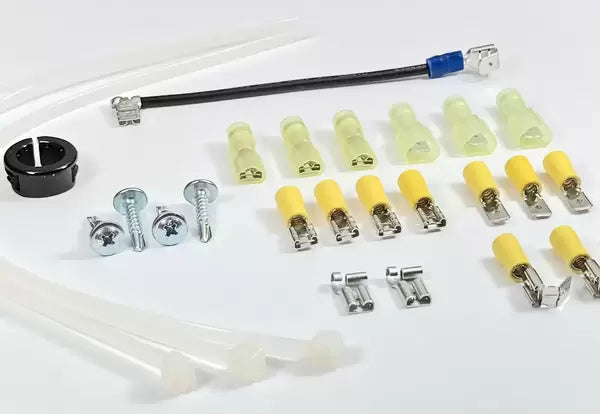

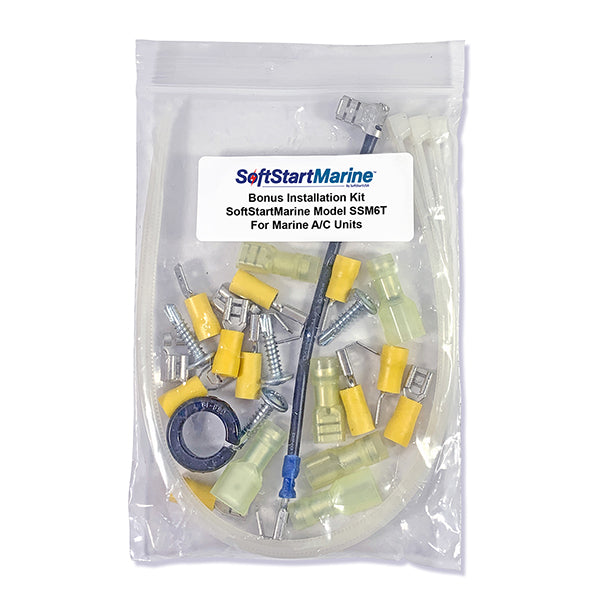

• Easy Installation: Includes free installation kit with connectors, screws, and wire ties.
• Live Tech Support: Free installation support via video chat for hassle-free setup.

Eliminate Low-Power Start-Up Issues For Your Boat's A/C

SoftStart Marine eliminates low-power A/C start-up problems for any A/C unit on any boat. It ensures your boat stays cool during those extreme weather days.

Benefits you’ll enjoy after installing a SoftStartMarine:

• Start and run 2 A/Cs on 30-amp (1 SoftStart Marine per A/C).
• Start an A/C with a small generator (e.g. Honda 2200).
• Start an A/C whether docked or sailing - on low power.
• Weather-resistant enclosure prevents moisture, dust infiltration.

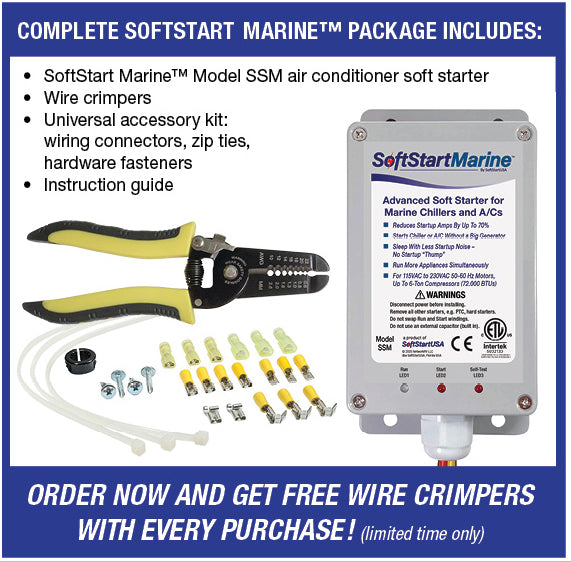

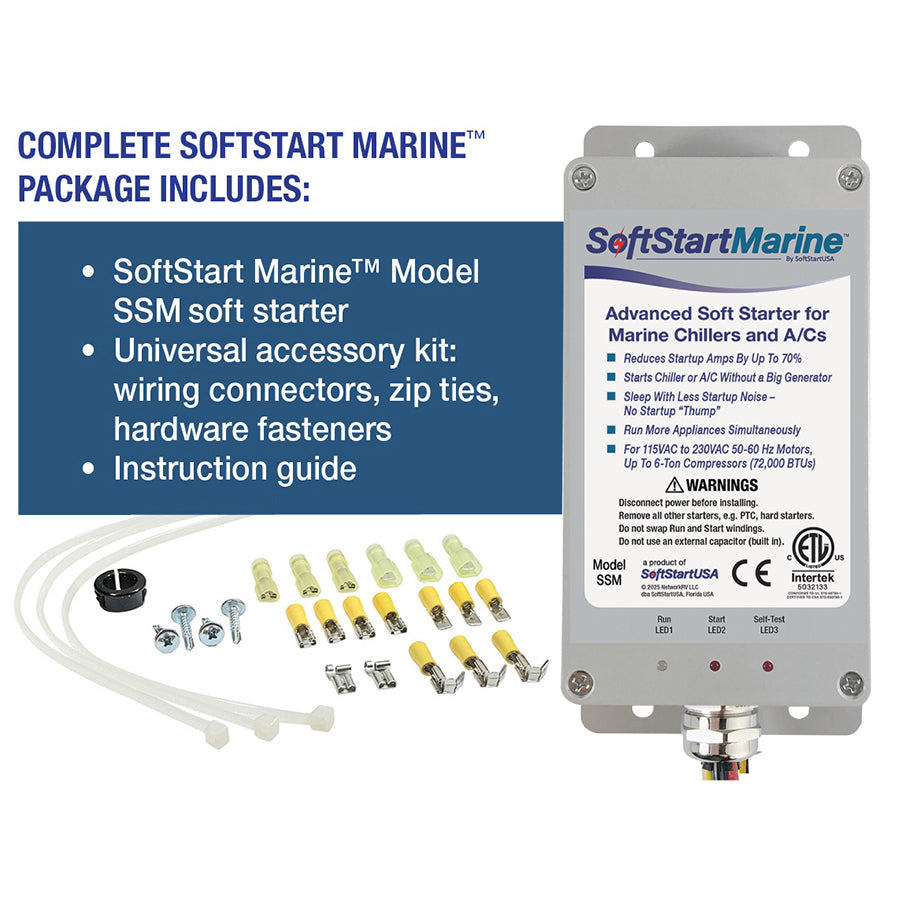

• Free install kit with screws, connectors, wire ties, etc.
• Free online install videos, guides and directions.

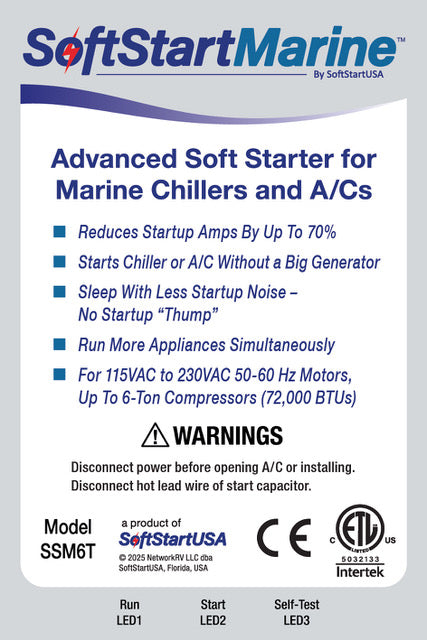

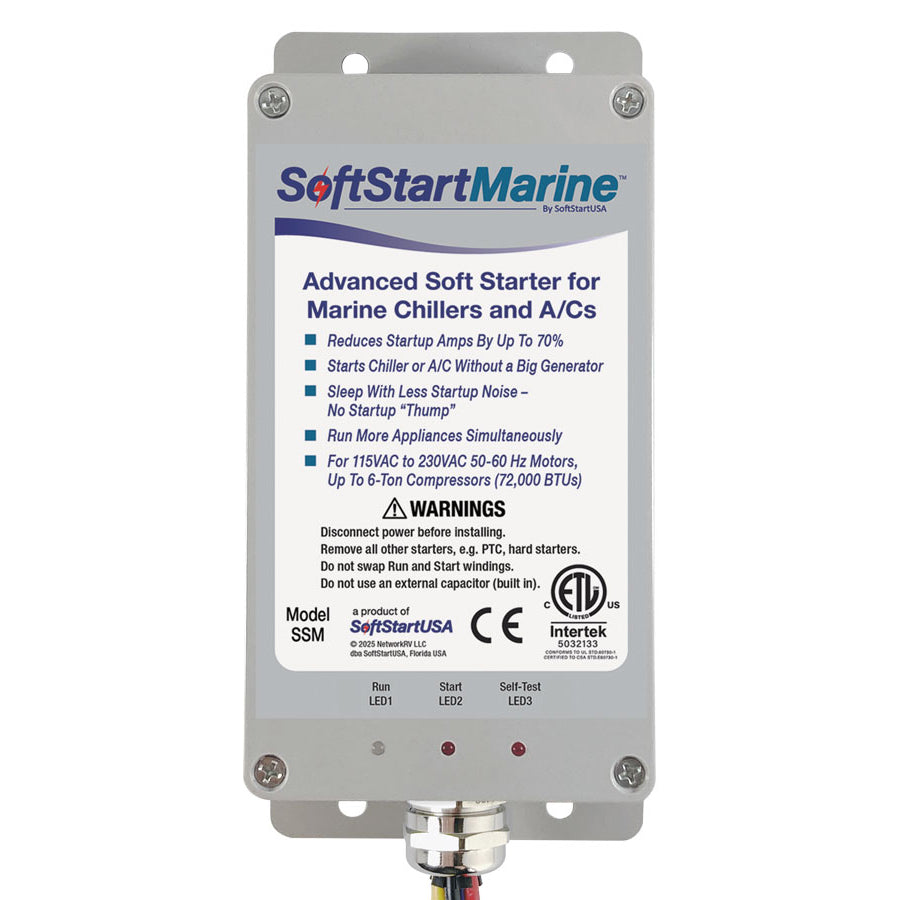

• 3 LEDs show status: Start, Run/Protect and Self-Test

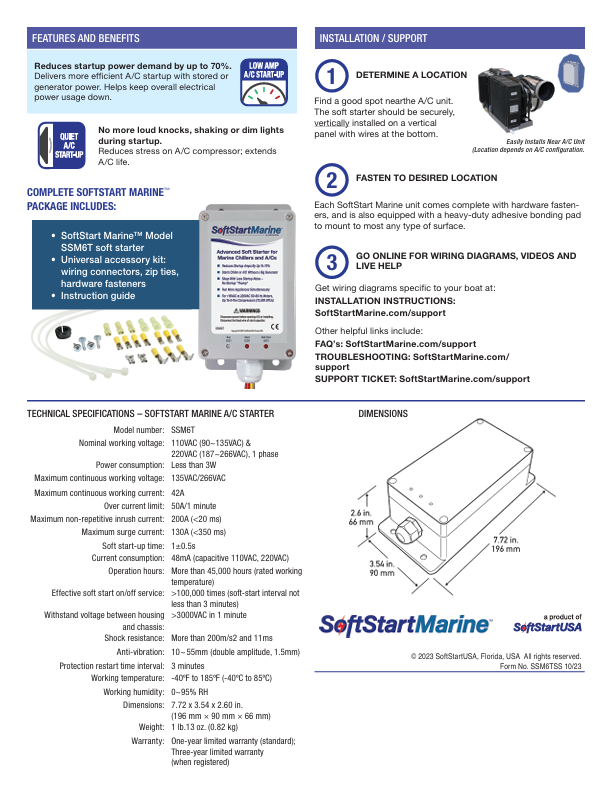

• Maximum Capacity: Up to 6 tons (72,000 BTUs)
• Voltage Compatibility: 120V / 240V AC
• Maximum Operating Current: 32A
• Startup Inrush Current Reduction: Up to 70%
• Frequency: 50Hz / 60Hz
• Power Consumption: <1W in standby mode
• Generator Compatibility: Works with 3,000W or larger generators
• Solar & Battery Compatibility: Compatible with battery-stored solar power systems
• Ingress Protection (IP) Rating: IP65 (weather-resistant, suitable for outdoor use)
• Operating Temperature Range: -40°F to 185°F (-40°C to 85°C)
• Dimensions: 6.5" x 3.9" x 2.4" (165mm x 100mm x 60mm)
• Weight: 1.8 lbs (0.8 kg)
• LED Indicators: Status, Power, Error diagnostics
• Wiring Configuration: Supports L1, L2, and Ground connections
• Installation Time: Less than 15 minutes
• Warranty: 3 years (with registration)

Q: My SoftStartMarine isn't working. What should I do?
A: Check the power supply (110-240V AC), ensure all connections are secure, and inspect for visible damage.

Q: Why is my A/C still drawing high power on startup?
A: Confirm the A/C model is compatible, and ensure SoftStartMarine is installed correctly.

Q: My generator shuts down during A/C startup.
A: Make sure your generator is of adequate wattage. Consider reducing the load by turning off other appliances.

Q: Is the unit making noise? Is that normal?
A: A slight hum or click during startup is normal. If the noise continues, inspect the unit for possible damage.

Q: The A/C won’t start after installation.
A: Double-check the installation and wiring. If necessary, reset the circuit breakers.

Q: Will SoftStartMarine work with my boat's A/C unit?
A: Yes, SoftStartMarine is designed to be compatible with all marine air conditioning units.

Q: Can I run multiple A/C units with SoftStartMarine?
A: No, you can use one SoftStartMarine per A/C unit.

Q: Does SoftStartMarine work with small generators?
A: Yes, it can run A/C units with small generators like the Honda 2200.

Q: Will using SoftStartMarine void my warranty?
A: No, installing SoftStartMarine will not void your A/C unit’s warranty.

Q: How does SoftStartMarine reduce power consumption?
A: It reduces the inrush current at startup, which helps conserve generator or shore power.

Q: Can SoftStartMarine handle multiple appliances?
A: SoftStartMarine is designed for use with one appliance at a time. For multiple units, install one SoftStartMarine per appliance.
